Dense Pack: Take 1

June 3-5:  At last I was ready for insulation. For good reason, the type of insulation, where to install it, and how to install it is of obsessive interest to green builders like me. Other building materials might be the same, but insulation is where we veer off. I chose dense-pack cellulose because there’s no other insulation that takes less energy to produce, uses more recycled content, and is less toxic to people and animals. Not counting direct-from-the-earth materials like straw bale, straw-clay, cordwood, log, and cob.

Yes, I did consider straw. But for my subdivision house geared to taking super-insulation and net-zero mainstream, I’ve heeled close to convention. All I’ve done is make deeper cavities and prioritized initial cost over operating cost.

There aren’t many contractors set up for this kind of work. Wallace Kennedy and sons of Accurate-Airtight Exteriors arrived from Madison to install what turned out to be the most number of bags ever for a dense-pack job. Wallace packed 238 bags in my 22 inch deep truss cavity, for a total R-80. That’s double code minimum.

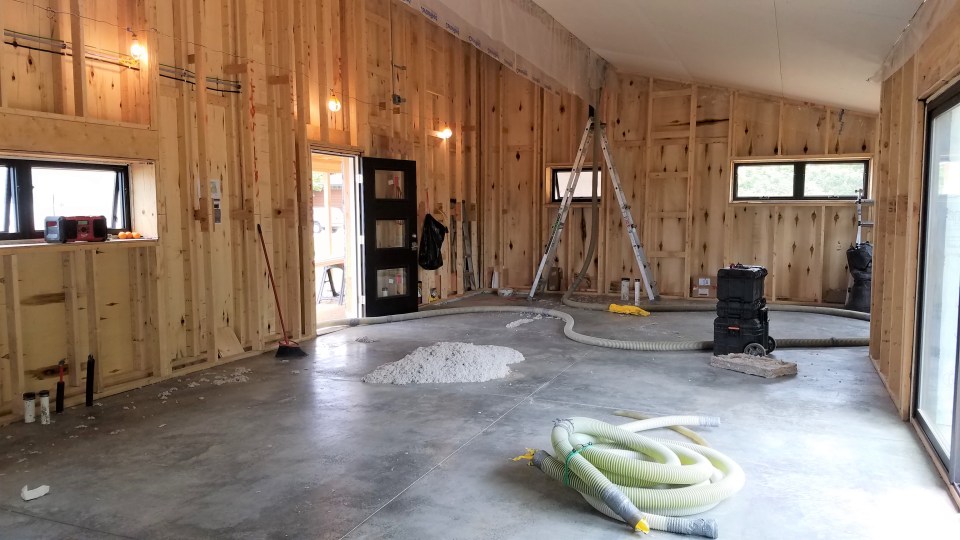

20190604_114844

The insulation comes from Champion Insulation in nearby Fond du Lac. It’s made from wood fiber paper stock and claims 85% recycled content. By weight, it’s 84% cellulose, 14% boric acid, and 2% starch—all benign materials that pose no threat to the environment. It doesn’t cause skin irritation like fiberglass, and has little or no smell—though breathing the dust should be avoided.

Cellulose reduces sound transmission, and when dense-packed it resists air movement, fire, pests, and vapor diffusion. Because it’s hygroscopic, it can take on and release moisture from surrounding materials like sheathing. This protective characteristic makes it especially favorable in double-stud walls that lack a layer of exterior sheet foam. The added borate aids in resisting mold and insects.

Cellulose is a “low embodied-energy” material. That’s the energy it takes to source its ingredients, manufacture and transport the product, and dispose of the product at the end of its useful life. Side-by-side comparisons with other insulation types are hard to come by. Cotton, wool, and cork are more energy-intensive and cause some pollution, while fiberglass, mineral wool, and all the foam insulations pose significant risks.

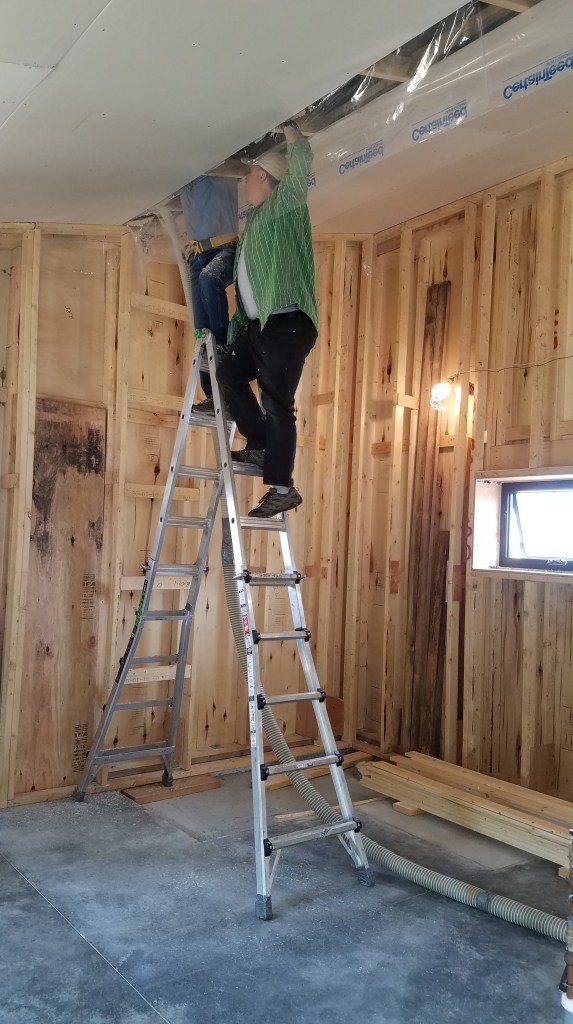

20190603_094156

expert installer Wallace Kennedy with owner Torrance Kramer of Accurate Airtight Exteriors

I ran the vapor retarder long and instructed the drywallers to skip over a 12” gap down the center of the ceiling for access to each truss bay. It took the crew 3 (monotonous) days to complete the job. Wallace stayed on hose, while the younger men fed the blower machine. Their final step was trimming & taping up the vapor retarder over the gap, making it ready for the 12” strip of drywall that will complete the airtight lid. I’m grateful for their conscientious work!
